IEC Connector Internal Frame Manufacturer – C13, C14, C7, C8 & C19 Inserts

TISDLIP manufactures IEC connector internal frames and conductive insert components for power cord connectors and appliance couplers. These internal structures support the positioning of electrical contacts, provide insulation between conductive parts and help maintain the mechanical stability of the assembled connector.

Our IEC connector internal frame solutions cover various configurations, including C13/C14, C7/C8, C15/C16 and C19/C20 connector components. Different designs are available according to connector specifications, rated current, operating temperature and assembly requirements.

IEC Connector Internal Frame Types

We provide internal frame and contact support solutions for different IEC 60320 connector configurations:

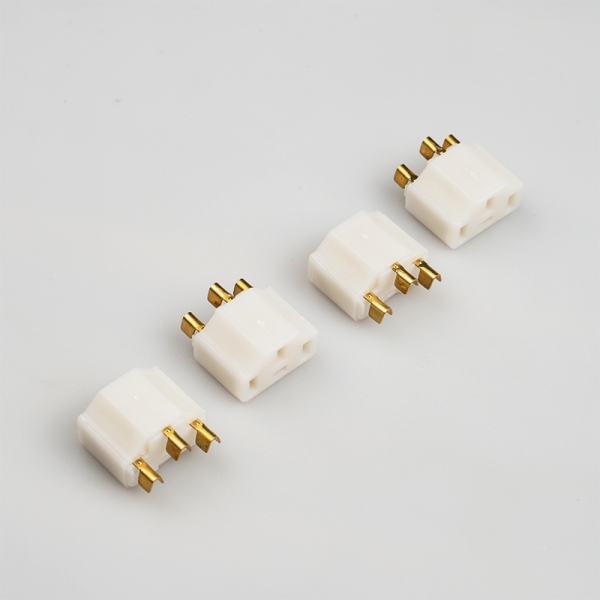

• C13/C14 Internal Frames: Three-pole structures with line, neutral and earth contacts, commonly used in computer equipment, monitors and power distribution applications.

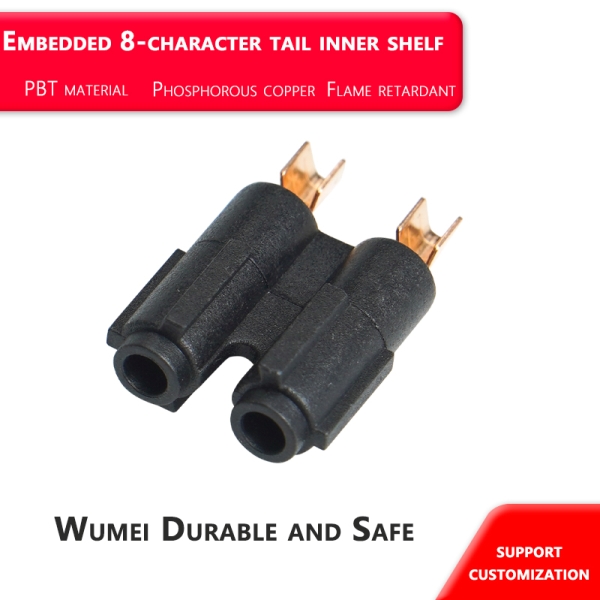

• C7/C8 Internal Frames: Two-pole, non-earthed structures commonly used for small appliances, audio equipment and other compatible electronic devices.

• C15/C16 Internal Frames: Three-pole connector components designed for applicable hot-condition applications.

• C19/C20 Internal Frames: Three-pole, higher-current connector components commonly used in servers, UPS systems and rack-mounted power distribution equipment.

Materials & Component Options

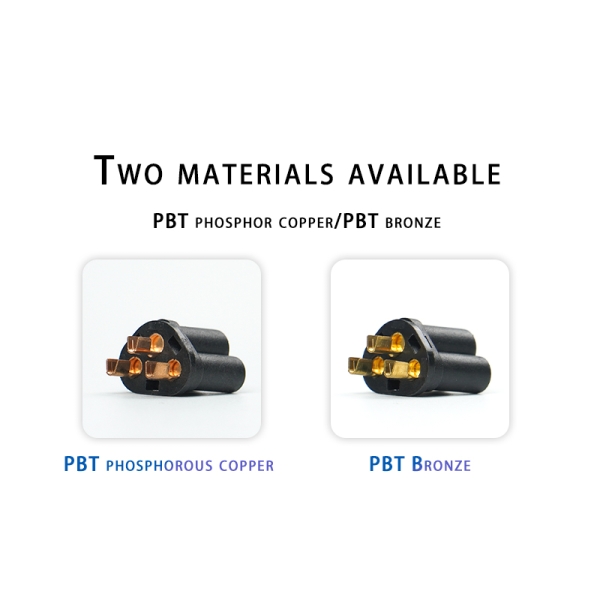

Depending on the connector design and application, insulating supports can be manufactured using engineering plastics such as PBT, PA66 or PC. Conductive contacts may use brass, phosphor bronze or other specified copper alloys.

Available customization options include contact structures, terminal configurations, plastic materials, dimensions and assembly designs. Material grades and flame-retardant ratings can be selected according to the required product specifications.

OEM & ODM IEC Connector Component Manufacturing

TISDLIP supports OEM and ODM customization for IEC connector internal frames and conductive components. We can develop suitable internal structures based on customer drawings, samples or technical requirements.

Whether you are sourcing C13/C14 power cord connector components, C7/C8 two-pole inserts or C19/C20 high-current connector structures, our team can help evaluate the component design and manufacturing requirements.

Contact TISDLIP to discuss your IEC connector internal frame project, request technical information or arrange sample evaluation.
