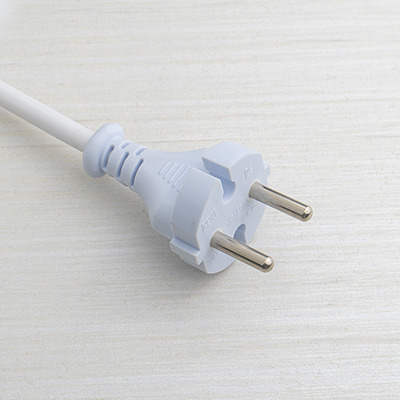

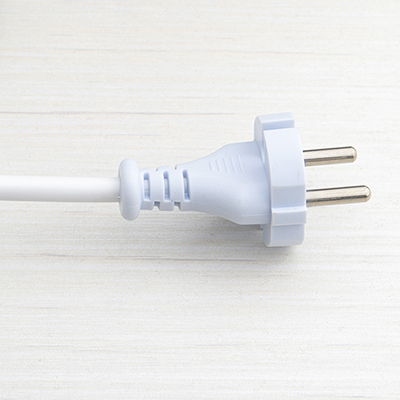

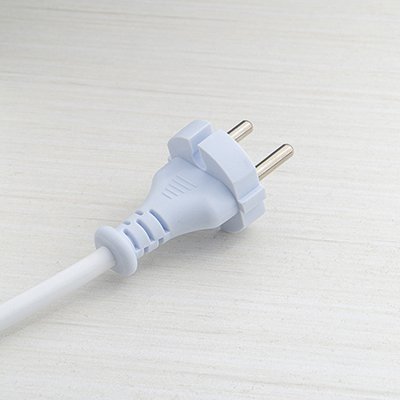

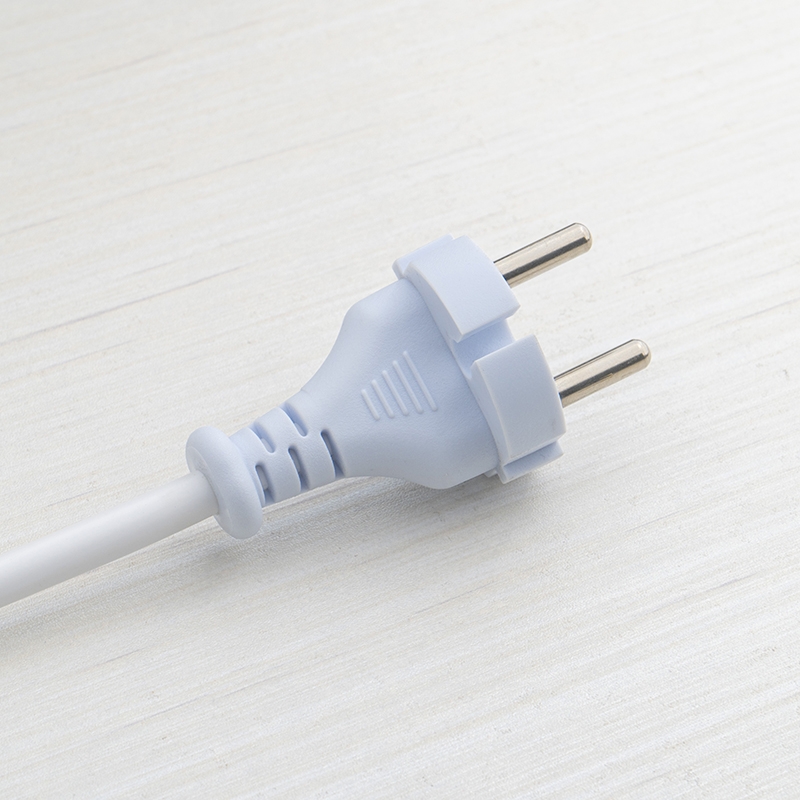

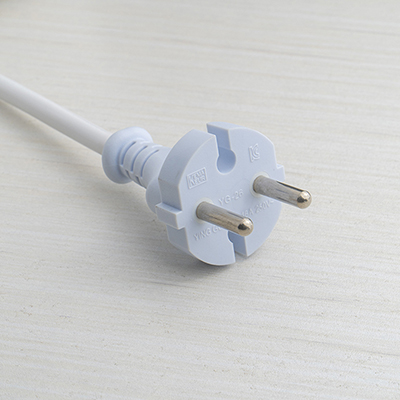

Netherlands Power Cords Europlug - AC Power Cable
(Non-Polarized) Europlug, 2.5 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding
(Non-Polarized) Europlug, 2.5 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding| Specification Data: Netherlands Power Cords, AC Power Cables, Europlug & Type F Plug | |
| Plug Standard | IEC60884-1 Europlug |
| Female End Type | C5, C7, C13, C15, stripped wires |
| Cordage Standards | H03VVH2-F, H03VV-F, H05VV-F, H05VVH2-F |
| Material | PVC Jacket Color Black & White, Temperature 70℃ |
| Conductor | oxygen-free coppe |
| Conductor Color Code | 2 wire: Brown, Blue |
| 3 wire: Brown, Blue, Green/Yellow | |
Netherlands Power Cords, fully moulded Cord Sets
Europlug & Type F Plug
| H03VVH2-F, H03VV-F (70℃ 300V/300V) H05VVH2-F, H05VV-F (70℃ 300V/500V) |
|||||
|---|---|---|---|---|---|
| Cordage Type | Conductor | Outside Diameter (mm) | Rated Current (A) | ||
| Sectional Area (mm²) | Resistance/KM (20℃) | ||||
| H03VVH2-F | .jpg) |
2*0.50 | 39.0 | 3.2*5.3 | 3 |
| 2*0.75 | 26.0 | 3.4*5.6 | 6 | ||
| H05VVH2-F | |
2*0.75 | 26.0 | 4.0*6.3 | 6 |
| 2*1.00 | 19.5 | 4.2*6.6 | 10 | ||
| H03VV-F |  |
2*0.50 | 39.0 | 5.4 | 3 |
| 2*0.75 | 26.0 | 5.6 | 6 | ||
 |
3*0.50 | 39.0 | 5.6 | 3 | |
| 3*0.75 | 26.0 | 6.0 | 6 | ||
| H05VV-F | |
2.*0.75 | 26.0 | 6.2 | 6 |
| 2*1.00 | 19.5 | 6.5 | 10 | ||
| 2*1.25 | 16.3 | 7.4 | 13 | ||
|
3*0.75 | 26.0 | 6.5 | 6 | |
| 3*1.00 | 19.5 | 7.0 | 10 | ||
| 3*1.25 | 16.3 | 7.7 | 13 | ||
| 3*1.50 | 13.3 | 8.0 | 16 | ||
